yaeP-rof operon and associated TUs in Escherichia coli K-12 genome

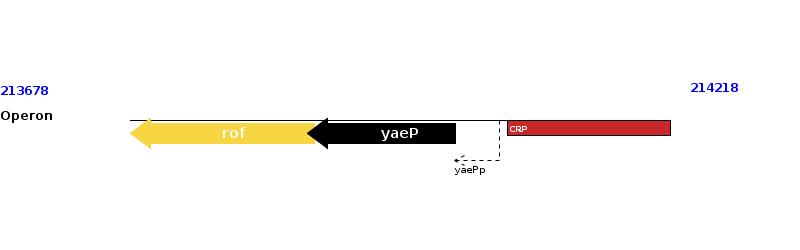

Operon
Name: yaeP-rof
This page displays every known transcription unit of this operon and their known regulation.

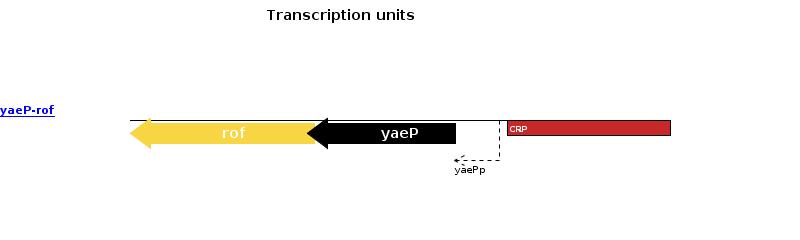

Transcription unit
Name: yaeP-rof
Gene(s): rof, yaeP   Genome Browser M3D Gene expression COLOMBOS
Evidence: [COMP-AINF] Inferred computationally without human oversight
Promoter
Name: yaePp
+1: 214187
Distance from start of the gene: 62
Sequence: gtgcagttgcggcgctgatattgcagaaatgagtgtggtatagtcaccttgcgaaacagaGtttatcttcgtaggcttaga
Evidence: [EXP-IDA-HPT-TRANSCR-INIT-M-RACE-MAP]
Reference(s): [1] Raghavan R., et al., 2011
TF binding sites (TFBSs)
[CRP,-] Phrase
Type Transcription factor Function Promoter Binding Sites Growth Conditions Evidence Confidence level (C: Confirmed, S: Strong, W: Weak) Reference(s)
LeftPos RightPos Central Rel-Pos Sequence
proximal CRP-cyclic-AMP repressor yaePp 214196 214218 -19.5 attgcagaaaTGAGTGTGGTATAGTCACCTTGCgaaacagagt nd [COMP-HINF-SIMILAR-TO-CONSENSUS], [EXP-IEP-GENE-EXPRESSION-ANALYSIS], [COMP-HINF-SIMILAR-TO-CONSENSUS] W [1]


Evidence

 [EXP-IDA-HPT-TRANSCR-INIT-M-RACE-MAP] High-throughput transcription initiation mapping

 [COMP-HINF-SIMILAR-TO-CONSENSUS] A person inferred or reviewed a computer inference of sequence function based on similarity to a consensus sequence.

 [EXP-IEP-GENE-EXPRESSION-ANALYSIS] Gene expression analysis


Reference(s)

 [1] Raghavan R., Sage A., Ochman H., 2011, Genome-wide identification of transcription start sites yields a novel thermosensing RNA and new cyclic AMP receptor protein-regulated genes in Escherichia coli., J Bacteriol 193(11):2871-4
